SMA Series
Aliner SMA connectors are precision connectors for microwave application up to 18 GHz and higher. The high mechanical strength, high durability and low VSWR indicate the characters. Together with semi-rigid cable, hi- grade lines can be installed. SMA receptacles (launchers) are used to provide transition to coax from stripline or microstrip on PCB.
Download SMA Series Catelog (PDF)
SMA CATEGORY
PCB connector (Edge mount)
- Straight Jack (female)
- Straight plug (male)
- Straight Bulkhead Jack (female)
PCB connector (SMD)
- Straight Jack (female)
PCB connector (PCB mount)
- Straight Jack (female)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Bulkhead Jack (female)
PCB connector (PCB mount & Cable)
- Right Angle Jack (female)
Cable connector
- Straight Jack (female)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Plug (male)
- Straight Bulkhead Jack (female)
Panel Mount Connector
- Straight Jack (female)
- Straight plug (male)
- Bulkhead Jack (female)
Press Fit
- Straight Jack (female)
Feed Through
- Straight Jack (female)
- Straight plug (male)
- Straight Bulkhead Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

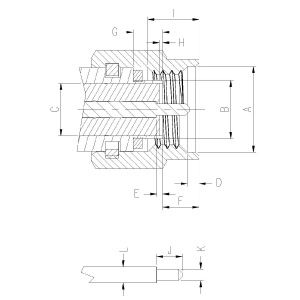

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø6.48 Ø.255 Ø6.73 Ø.265
B- Ø4.34 Ø.171 Ø4.59 Ø.181
C- Ø4.10 Ø.162 Ø4.15 Ø.163
D- 0.64 .025 1.14 .045
E- 0.00 .000 0.25 .010
F- 2.59 .102 3.35 .132
G- 2.03 .080
H- 0.00 .000 0.25 .010
I- 3.71 .146 4.32 .170
J- 2.03 .080 2.29 .090
K- Ø0.90 Ø.036 Ø0.93 Ø.037
L- Ø1.25 Ø.049 Ø1.29 Ø.051

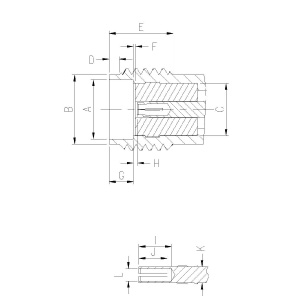

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø4.60 Ø.181 Ø4.67 Ø.184
B- Ø5.28 Ø.208 Ø5.49 Ø.216
C- Ø4.10 Ø.162 Ø4.15 Ø.163
D- 0.38 .015 1.14 .045
E- 3.81 .150
F- 0.00 .000 0.25 .010
G- 1.88 .074 1.98 .078
H- 0.00 .000 0.25 .010
I- 2.54 .100
J- 1.91 .075 2.41 .095
K- Ø1.25 Ø.049 Ø1.29 Ø.051
L- Ø0.94 Ø.037 Ø0.99 Ø.093

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B)
Zinc alloy (Zinc 5)		 Nickel or Gold plating
  Stainless steel per (QQ-S-764 class 303) Passivated
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Same as body
Gasket Silicone rubber None
Electrical :
Nominal impedance 50Ω
Frequency up to 12.4 GHz flexible cable, 18 GHz  semi-rigid cable
VSWR 1.15 + 0.02xf GHz for straight connector typical
1.25 + 0.025xf GHz for right angle connector typical
Working voltage 335 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 5000 MΩ min.
Contact resistance center conductor 3.0 mΩ
outer conductor 2.0 mΩ
Mechanical & Environmental :
Mating 1/4" -36 UNS thread coupling
Cable retention 6 kgf typical
Coupling nut retntion ≧18 kgf
Durablility ≧500 cycles
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
