TNC Series
Aliner TNC connectors were developed for missile and aircraft application, also called the threaded version of the BNC available in 50Ω and 75Ω types. TNC connectors can be used under higher environmental load than series BNC especially under vibration load.
Download TNC Series Catelog (PDF)
TNC CATEGORY
PCB connector (PCB mount)
- Straight Jack (female)
- Right Angle Bulkhead Jack (female)
PCB connector (PCB mount & Cable)
- Straight Bulkhead Jack (female)
Cable connector
- Straight Jack (female)
- Straight plug (male)
- Right Angle Bulkhead Jack (female)
- Straight Bulkhead Jack (female)
Switch connector (PCB edge mount)
- Straight Jack (female)
Panel Mount Connector
- Straight Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

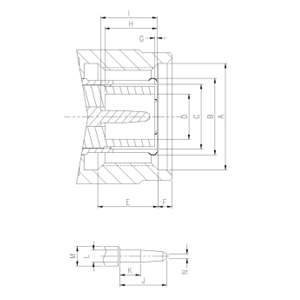

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø11.18 Ø.440
B- Ø7.93 Ø.321 Ø8.12 Ø.319
C- Ø4.83 Ø.190
D- Ø1.32 Ø.052 Ø1.37 Ø.054
E- 5.33 .210 5.84 .230
F- 0.15 .006
G- 5.28 .208 5.79 .228
H- 0.08 .003 1.02 .040
I- 3.96 .156
J- 2.06 .081 2.21 .087
K- 1.98 .078
L-     0.64 .025
M-     1.98 .078

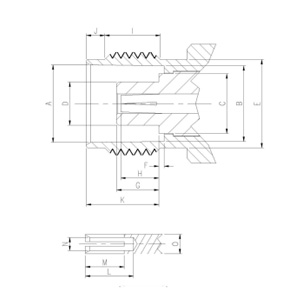

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø9.60 Ø.378 Ø9.68 Ø.381
B- Ø8.79 Ø.346 Ø9.04 Ø.356
C- Ø8.31 Ø.327 Ø8.46 Ø.333
D- Ø8.10 Ø.319 Ø8.15 Ø.321
E-     Ø4.72 Ø.186
F- 1.73 .068 2.24 .088
G- 8.31 .327 8.51 .335
H- 4.75 .187
I- 4.78 .188 5.28 .208
J- 4.72 .186 5.23 .206
K-     0.15  .006
L- 4.95 .195
M- 2.06 .081 2.21  .087
N- 10.52 .414

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)		 Gold plating
Insulator PTFE or P.P. None
Crimp ferrule Annealed copper Same as body
Gasket Silicone rubber None
Electrical :
Nominal impedance 50Ω
Frequency up to 11 GHz
VSWR 1.25 + 0.02xf GHz
Working voltage 500 Volts rms max.
Dielectric withstanding voltage 1500 Volts rms min.
Insulation resistance 5000 MΩ min.
Contact resistance center conductor 4.0 mΩ
outer conductor 1.5 mΩ.
Mechanical & Environmental :
Mating 7/16"-28 UNEF thread coupling
Cable retention 6 kgf typical
Durablility ≧500 cycles
Coupling nut retention 20 kgf min.
Temperature range P.P. -45℃  to+85℃, PTFE -55℃  to+155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
