MCX Series
Aliner MCX micro miniature connectors have essential space reductions against SMB. Aliner MCX connectors can be used from DC up to 6 GHz and higher. The features are high reliability and durability as well as ease of assembly to coaxial cables.
Download MCX Series Catelog (PDF)
MCX CATEGORY
PCB connector (Edge mount)
- Straight Jack (female)
PCB connector (SMD)
- Straight Jack (female)
PCB connector (PCB mount)
- Straight Jack (female)
- Bulkhead plug (male)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Plug (male)
PCB connector (PCB mount & Cable)
- Right Angle Jack (female)
Cable connector
- Straight Jack (female)
- Straight plug (male)
- Right Angle Plug (male)
- Straight Bulkhead Jack (female)
Switch connector (PCB edge mount)
- Straight Jack (female)
Switch connector (PCB vertical mount)
- Straight Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

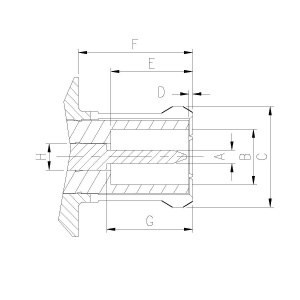

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø0.48 Ø.019 Ø0.53 Ø.021
B- Ø2.00 Ø.079 Ø2.07 Ø.081
C- Ø3.66 Ø.144 Ø3.76 Ø.148
D- 0.00 .000 0.30 .012
E- 2.81 .111 3.20 .126
F- 4.16 .164
G- 2.81 .111 3.20 .126
H- Ø0.94 Ø.037 0.98 .039

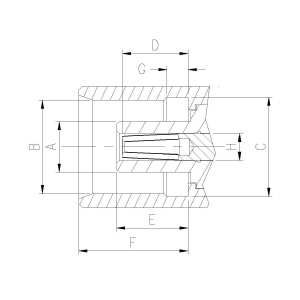

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø1.80 Ø.071 Ø1.97 Ø.076
B- Ø3.43 Ø.135 Ø3.48 Ø.137
C- Ø3.61 Ø.142 Ø3.75 Ø.148
D- 2.31 .091 2.79 .110
E- 2.61 .103 2.79 .110
F- 4.00 .157 4.12 .162
G- 0.75 .030 0.85 .033
H- Ø0.94 Ø.037 Ø0.98 Ø.039

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)		 Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Same as body
Electrical :
Nominal impedance 50Ω
Frequency up to 6.0 GHz
VSWR 1.30 max. straight connector
Working voltage 250 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 1000 MΩ min.
Contact resistance center conductor 5.0 mΩ initial
outer conductor 3.0 mΩ initial
Mechanical & Environmental :
Mating Snap on coupling
Cable retention 3 Kgf typical
Engagement force 2.5 kgf max.
Disengagement force 0.5 kgf min.
Durablility ≧500 cycles
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
