MMCX Series
Aliner MMCX connectors were developed for applications which require smallest dimensions. Aliner MMCX connectors can be used from DC up to 6 GHz and higher. The locking consists of a snap-on mechanism. Also the non-slotted outer conductor connection has a low Rf-leakage.
Download MMCX Series Catelog (PDF)
MMCX CATEGORY
PCB connector (Edge mount)
- Straight Jack (female)
- Straight plug (male)
PCB connector (SMD)
- Straight Jack (female)
- Right Angle Jack (female)
PCB connector (PCB mount)
- Straight Jack (female)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Plug (male)
PCB connector (PCB mount & Cable)
- Right Angle Jack (female)
Cable connector
- Straight Jack (female)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Plug (male)
- Straight Bulkhead Jack (female)
Switch connector (PCB edge mount)
- Straight Jack (female)
Switch connector (PCB vertical mount)
- Straight Jack (female)
Panel Mount Connector
- Straight Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

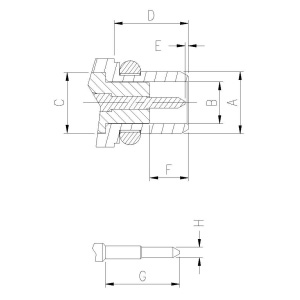

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A-     Ø2.39 Ø.094
B- Ø1.57 Ø.062 Ø1.63 Ø.064
C- Ø2.31 Ø.091 Ø2.36 Ø.092
D- 2.69 .106
E- 0.00 .000 0.25 .100
F- 1.25 .049
G-     3.15 .124
H- 0.38 .015 0.43 .017

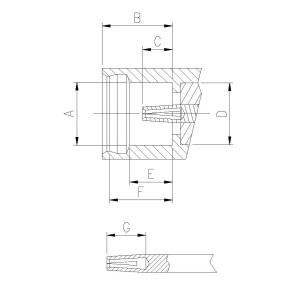

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø2.41 Ø.181
B- 2.59 .102
C- 0.89 .035 1.20 .047
D- Ø2.31 Ø.091 Ø2.36 Ø.093
E- 1.57 .062 1.63 .064
F- 2.28 .090 2.33 .092
G- 1.40 .055
H-     0.23 .009
I- Ø2.87 Ø.113 Ø2.90 Ø.114
J- Ø3.00 Ø.118 Ø3.05 Ø.120

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)		 Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Gold plating
Electrical :
Nominal impedance 50Ω
Frequency up to 6.0 GHz
VSWR 1.35 max. straight connector
Working voltage 125 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 500 MΩ min.
Contact resistance center conductor 5.0 mΩ
outer conductor 2.5 mΩ
Mechanical & Environmental :
Mating Snap on coupling
Cable retention 3 Kgf typical
Engagement force 2.0 kgf max.
Disengagement force 0.5 kgf min.
Durablility ≧500 cycles
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
