1.0-2.3 Series
Aliner 1.0/2.3 series is a compact design which provides a push-pull coupling system allows quick installation; they are suited to applications where space is limited. Aliner 1.0/2.3 coaxial connectors are 50 ohm units operating from 0~6 GHz.
Download 1.0-2.3 Series Catelog (PDF)
1.0-2.3 CATEGORY
PCB connector (PCB mount)
- Right Angle Plug (male)
- Right Angle Bulkhead Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

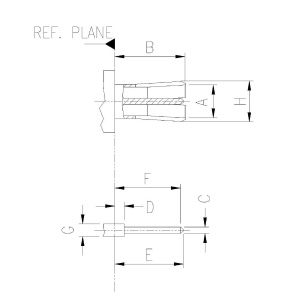

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A-                Ø2.30    Ø.091 nominal
B- 5.40 .213 5.70 .224
C- Ø0.47 Ø.018 Ø0.52 Ø.020
D-   1.15 .045
E-   5.50 .217
F- 4.50 .177
G-               Ø1.00   Ø.039 nominal

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- M5.5x0.5
B- Ø3.00 Ø.118 Ø3.06 Ø.120
C- Ø4.03 Ø.159 Ø4.14 Ø.163
D- 0.50 .020 0.60 .024
E- 1.80 .071 1.90 .075
F- 30°±2°
G- 5.80 .228 5.90 .232
H- 6.40 .252 6.50 .256
I- 1.15 .045 1.75 .069
J- 4.50 .177
K- Ø1.00   Ø.039 nominal
L- R0.75 R.030 R0.85 R.033
M-    R0.30 R.011
N Ø3.53 Ø.139 Ø3.60 Ø.142

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)		 Gold plating
Insulator PTFE None
Electrical :
Nominal impedance 50Ω
Frequency up to 6.0 GHz
VSWR 1.35 max.
Working voltage 250 Volts rms max.
Dielectric withstanding voltage 1000 Volts rms min.
Insulation resistance 1000 MΩ min.
Contact resistance center conductor 4.0 mΩ initial
outer conductor 2.0 mΩ initial
Mechanical & Environmental :
Mating Snap on coupling
Cable retention 2.3 Kgf typical
Durability ≥ 500 cycles
Engagement force 2.75 kgf max.
Disengagement force 0.4 kgf min.
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
