MC-CARD Series
Aliner MC-CARD connectors are suitable for DC up to 6 GHz. Applications include wireless network communication and etc.. Aliner MC-CARD is quick connection/disconnection snap-on mating.
Download MC-CARD Series Catelog (PDF)
MC-CARD CATEGORY
PCB connector (Edge mount)
- Straight Jack (female)
PCB connector (PCB mount)
- Straight plug (male)
Cable connector
- Straight Jack (female)
- Straight plug (male)
- Right Angle Jack (female)
- Right Angle Plug (male)
Switch connector (PCB edge mount)
- Straight Jack (female)
Switch connector (PCB vertical mount)
- Straight Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

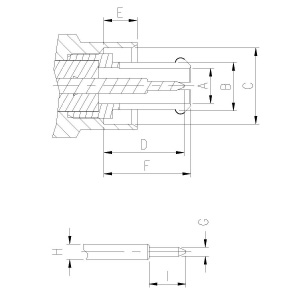

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø1.35 Ø.053 Ø1.45 Ø.057
B- Ø1.80 Ø.071 Ø1.90 Ø.075
C- Ø2.95 Ø.116 Ø3.05 Ø.120
D- 3.15 .124 3.25 .128
E- 1.25 .049 1.35 .053
F- 3.35 .132 3.45 .136
G- Ø0.33 Ø.013 Ø0.37 Ø.041
H- Ø0.58 Ø.023 Ø0.62 Ø.024
I- 1.40 .055 1.50 .059

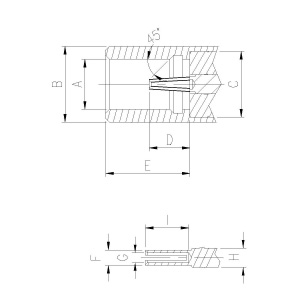

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø1.90 Ø.075 Ø2.00 Ø.079
B- Ø2.90 Ø.114 Ø3.05 Ø.120
C- Ø2.50 Ø.098 Ø2.60 Ø.103
D- 1.50 .059 1.70 .067
E- 3.20 .126 3.40 .134
F- Ø0.58 Ø.023 Ø0.62 Ø.024
G- Ø0.33 Ø.013 Ø0.43 Ø.017
H- Ø0.70 Ø.027 Ø0.80 Ø.031
I- 3.20 .126 3.40 .134

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Same as body
Electrical :
Nominal impedance 50Ω
Frequency up to 6.0 GHz
VSWR 1.20 max. @3GHz
Working voltage 100 Volts rms.
Dielectric withstanding voltage 250 Volts rms.
Insulation resistance 500 MΩ min.
Contact resistance center conductor 5.0 mΩ initial
outer conductor 3.0 mΩ initial
Mechanical & Environmental :
Mating Snap on coupling
Durability ≥ 500 cycles
Engagement force 2.50 kgf max.
Disengagement force 0.3 kgf min.
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
