SMP Series
Aliner SMP connectors are designed for high density mounting packaging. The low profile design of SMP connectors permit module mounting with a center-to-center dimension as low as possible. Aliner SMP series provides 3 levels of retention by the male contact-smooth bore, limited detent and full detent.
Download SMP Series Catelog (PDF)
SMP CATEGORY
Cable connector
- Straight Plug (female contact)
- Right Angle Plug (female contact)
SEARCH
Advanced search

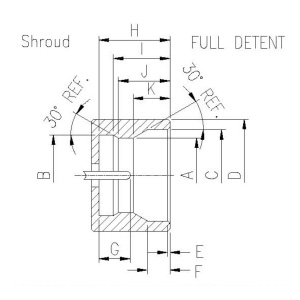

Interface Mating Dimensions Technical Data
Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A-     Ø3.43 Ø.135
B-     Ø3.70 Ø.145
C- 0.64 .025 0.89 .035
D- 3.40 .132
E- -0.12 -.005 0.00 .000
F- -0.12 -.005 0.00 .000

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø2.90 Ø.114 Ø3.00 Ø.118
B- Ø3.15 Ø.124 Ø3.23 Ø.127
C- Ø3.55 Ø.140 Ø3.65 Ø.144
D- Ø1.40 Ø.055 Ø1.45 Ø0.57
E- 0.08 .003 0.18 .007
F- 0.84 .033 0.94 .037
G- 0.89 .035 1.78 .070
H- 2.75 .108 2.85 .112
I- 2.18 .086 2.28 .090
J- 1.98 .078 2.08 .082
K- 1.40 0.55 1.45 .057

NOTE: DIM B FOR FULL DETENT
Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B)
Beryllium copper per (QQ-C-530 or JIS-C1730)		 Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) Gold plating
Insulator PTFE per ASTM D1710 and ASTM D1457 or none None
Shroud non-hermetic Stainless steel (SUS 303) Passivated
Electrical :
Nominal impedance 50Ω
Frequency up to 12 GHz
VSWR ≦1.25 @ 6.0 GHz
≦1.50 @ 12.0 GHz
Working voltage 250 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 5000 MΩ min.
Contact resistance center conductor 6.0 mΩ
outer conductor 1.5 mΩ
Mechanical & Environmental :
Mating Snap on coupling
Engage force 15 lbs full detent max.
10 lbs limited detent max.
2.5 lbs smooth bore max.
Disengage force 5 lbs full detent min.
2 lbs limited detent min.
0.5 lbs smooth bore min.
Durablility ≧250 cycles limited detent typical
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
