F-Type Series
Aliner F-Type is a 75 ohm threaded connector series with high performance and competitive cost. The connectors are primarily applied to CATV, set top boxes, cable modems and other 75 ohm systems. Aliner F-type connectors feature up to 3GHz.
Download F-Type Series Catelog (PDF)
F-Type CATEGORY
PCB connector (Edge mount)
- Straight Jack (female)
PCB connector (PCB mount)
- Straight Jack (female)
- Right Angle Jack (female)
Shielding connector
- Straight Jack (female)
- Right Angle Jack (female)
SEARCH
Search for Part Number
Search for News and Events
Advanced search
Interface Mating Dimensions
Technical Data

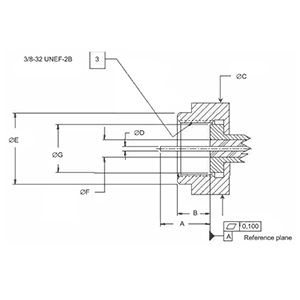

Male:
LTR.
Millimeters / Inches
MINIMUM
MAXIMUM
A-
6.35
0.250
8.63
0.340
B-
4.00
0.157
7.29
0.287
C-
-
-
16.61
0.654
D-
0.64
0.025
1.13
0.044
E-
10.41
0.410
11.04
0.435
F-
-
-
5.84
0.230
G-
7.88
0.310

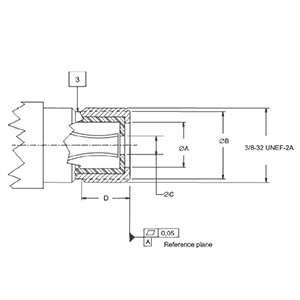

Female:
LTR.
Millimeters / Inches
MINIMUM
MAXIMUM
A-
3.90
0.154
7.40
0.291
B-
7.50
0.295
8.50
0.335
C-
1.20
0.047
1.50
0.059
D-
7.50
0.295
-
-
Material / Finish :
Material
Finish
Connector body
Brass per (QQ-B-626 or JIS-C3604B) or
ZINC (Zemak 5)
Nickel or Tin plating
Center contact female
Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)
Tin plating
Insulator
PA9T or PTFE
Color : Nature or Black
Electrical :
Nominal impedance
75Ω
Frequency up to
3.0 GHz
VSWR
1.50 max.
Working voltage
250 Volts rms max.
Dielectric withstanding voltage
500 Volts rms min.
Mechanical & Environmental :
Mating
3/8”-32UNEF thread coupling
Durability
≥ 500 cycles
Temperature range
-40℃ to +90℃
Pull the Force Gauge
30 lbs MIN
