SSMCX Series
Aliner SSMCX micro miniature connectors provide advantages of essential space reduction against MMCX. Aliner SSMCX connectors can be used from DC up to 6 GHz and higher. The features are high reliability and durability as well as ease of assembly to coaxial cables.
Download SSMCX Series Catelog (PDF)
SSMCX CATEGORY
Cable connector
- Straight Jack (female)
- Straight plug (male)
Cable Switch
- Straight Jack (female)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

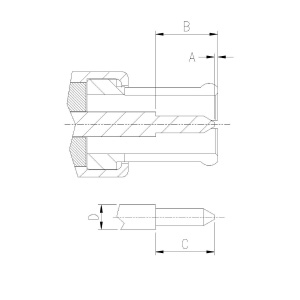

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- 0.00 .000 0.25 .001
B- 1.23 .048 1.73 .068
C- 1.30 .051 1.50 .059
D- Ø0.57 Ø.022 Ø0.63 Ø.025

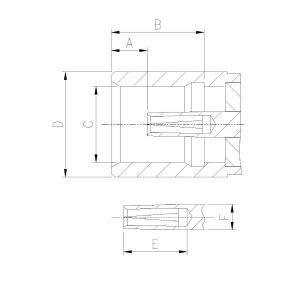

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- 0.60 .024 1.10 .043
B- 2.08 .082 2.32 .091
C- Ø1.75 Ø.069 Ø1.85 Ø.073
D- Ø2.45 Ø.096 Ø2.55 Ø.100
E- 1.50 .059 1.80 .071
F- Ø0.57 Ø.022 Ø0.63 Ø.025

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) Gold plating
Insulator PTFE None
Electrical :
Nominal impedance 50Ω
Frequency up to 6 GHz
VSWR 1.30 max. @ 1-3 GHz
1.50 max. @ 3-6 GHz
Working voltage 250 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 1000 MΩ min.
Contact resistance center conductor 5.0 mΩ
outer conductor 3.0 mΩ.
Mechanical & Environmental :
Mating Snap on coupling
Cable retention 2.5 kgf typical
Durablility ≧500 cycles
Engagement force ≦ 2.0 kgf
Disengagement force 0.5 to 2.0 kgf
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
