SSMB Series
Aliner SSMB connector, designed for use where small, light-weight interconnection is needed, has a snap-on coupling and is a miniaturized version of SMB connector.
Download SSMB Series Catelog (PDF)
SSMB CATEGORY
PCB connector (Edge mount)
- Straight Jack (male contact)
PCB connector (SMD)
- Straight Plug (female contact)
PCB connector (PCB mount)
- Straight Jack (male contact)
- Straight Plug (female contact)
- Right Angle Jack (male contact)
Cable connector
- Straight Jack (male contact)
- Straight Plug (female contact)
- Right Angle Jack (male contact)
- Right Angle Plug (female contact)
Switch connector (PCB edge mount)
- Straight Jack (male contact)
SEARCH
Advanced search
Interface Mating Dimensions Technical Data

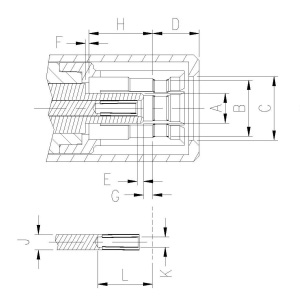

Male:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø1.30 Ø.051 Ø1.35 Ø.051
B- Ø2.46 Ø.097 Ø2.51 Ø.097
C- Ø2.74 Ø.108 Ø3.21 Ø.108
D-     2.26 .089
E- 0.00 .000 0.20 .008
F- 0.00 .000 0.20 .008
G- 0.43 .017 0.53 .021
H- 2.74 .108 2.79 .110
I-               Ø2.11     Ø.083 nominal
J- Ø0.63 Ø.025 Ø0.68 Ø.027
K- Ø0.45 Ø.018 Ø0.50 Ø.020
L- 2.46 .097

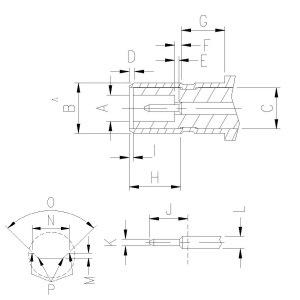

Female:
LTR. Millimeters / Inches
MINIMUM MAXIMUM
A- Ø1.37 Ø.054 Ø1.42 Ø.056
B- Ø2.62 Ø.103 Ø2.68 Ø.106
C-               Ø2.11    Ø.083 nominal
D- 0.00 .000 0.50 .020
E- 0.00 .000 0.13 .005
F- 0.46 .018 0.56 .022
G- 2.29 .090
H- 2.69 .106 2.74 .108
I- 0.00 .000 0.13 .005
J-     2.44 .096
K- Ø0.36 Ø.014 Ø0.40 Ø.016
L- Ø0.63 Ø.025 Ø0.68 Ø.027
M- 0.05 .002 0.15 .006
N- 0.64 .025 0.74 .029
O- 90° nominal
P- R0.08 nominal

Material / Finish :
  Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or Gold plating
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact female Beryllium copper per (QQ-C-530 or JIS-C1730) or
Phosphor bronze per (QQ-B-750 or JIS-C5441B)		 Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Same as body
Gasket Silicone rubber None
Electrical :
Nominal impedance 50Ω
Frequency up to 4.0 GHz
VSWR 1.25 max. @4GHz for straight connector typical
1.50 max. @4GHz for right angle connector typical
Working voltage 250 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 500 MΩ min.
Contact resistance center conductor 6.0 mΩ initial
outer conductor 1.5 mΩ.
Mechanical & Environmental :
Mating Snap on coupling
Cable retention 3.0 kgf typical
Durablility ≧500 cycles
Engagement force 3.0 kgf max.
Disengagement force 0.5 kgf min.
Temperature range -55℃ to +155℃
Vibration Per MIL-STD-202 Method 204 Test Condition D
Corrosion Per MIL-STD-202 Method 101 Test Condition B
